Concrete screw UltraCut FBS II US R

The high-performance concrete screw for absolute installation ease and external applications

The fischer concrete screw UltraCut FBS II US R, with the specially hardened red tip is a high-performance anchoring solution for fast installation. The concrete screw with the pressed washer is ideal for applications outside or in damp areas. The European Technical Approval for cracked concrete and non-cracked concrete as well as for seismic loads and classification into fire resistance class R 120 guarantee even more safety. The saw tooth geometry enables a quick and easy installation. No drill hole cleaning is required for installation in ceilings and floors. The expansion-free anchorage (undercut) ensures low edge and axial spacings.

Opis proizvoda

Advantages
  • The specially hardened red tip provides a faster and more secure installation.
  • The stainless steel concrete screw guarantees a high level of corrosion resistance especially for wet rooms and external applications.
  • The special saw tooth geometry enables fast cutting into the concrete.
  • Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
  • The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2.
  • The approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again.
  • The three embedment depths, allow for using the UltraCut FBS II R in many different applications and enable a high flexibility.
  • The short UltraCut FBS II R, with a reduced embedment in depth, allows for a short drill hole depth, fast installation and less reinforcement hits.
  • The concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel CP and stainless steel R has an ETA for bricks of clay (EN771-1), solid sand-lime brick (EN771-2) and perforated sand-lime brick (EN771-2) for a flexible use in different substrates.
  • The installation of the concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel and stainless steel R in masonry brick can be made in the joints or in plastered substrates also in groups.

Dostupne verzije proizvoda


21 pronađeno verzija proizvoda

21 pronađeno verzija proizvoda

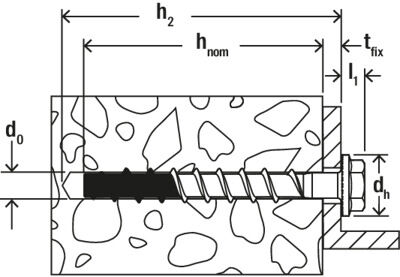

Verzija
ETA-approval
Drill diameter

d0

Min. drill hole depth for through fixings

h2

Screw dimension

ds x ls

Broj artikla 543565

8 [mm]

70 [mm]

10.0 x 60 [mm]

Broj artikla 543566

8 [mm]

80 [mm]

10.0 x 70 [mm]

Broj artikla 543567

8 [mm]

90 [mm]

10.0 x 80 [mm]

Broj artikla 543568

8 [mm]

100 [mm]

10.0 x 90 [mm]

Broj artikla 558239

8 [mm]

110 [mm]

10.0 x 100 [mm]

Broj artikla 558240

8 [mm]

130 [mm]

10.0 x 120 [mm]

Broj artikla 558241

8 [mm]

150 [mm]

10.0 x 140 [mm]

Broj artikla 558242

8 [mm]

170 [mm]

10.0 x 160 [mm]

Broj artikla 543569

10 [mm]

70 [mm]

12.0 x 60 [mm]

Broj artikla 543570

10 [mm]

80 [mm]

12.0 x 70 [mm]

Broj artikla 543571

10 [mm]

90 [mm]

12.0 x 80 [mm]

Broj artikla 543572

10 [mm]

100 [mm]

12.0 x 90 [mm]

10 [mm]

110 [mm]

12.0 x 100 [mm]

10 [mm]

130 [mm]

12.0 x 120 [mm]

10 [mm]

150 [mm]

12.0 x 140 [mm]

10 [mm]

170 [mm]

12.0 x 160 [mm]

Broj artikla 543575

12 [mm]

80 [mm]

14.0 x 70 [mm]

Broj artikla 543576

12 [mm]

95 [mm]

14.0 x 85 [mm]

Legenda = Dopuštenje dostupno = Dopuštenje nije dostupno
Više rezultata
Pregledano 18 od 21 verzija
0

Primjena i dozvola

Applications
  • Guard rails
  • Consoles/Base plates
  • Metal profiles
  • Steel constructions
  • Façades
  • Protection barriers
Building materials
Approved for:
  • Concrete C20/25 to C50/60, cracked and non-cracked
  • Bricks of clay (EN771-1)
  • Solid sand-lime brick (EN771-2)
  • Perforated sand-lime brick (EN771-2)
Also suitable for:
  • Concrete C12/15
  • Solid building materials
  • Masonry with a dense structure
* Detaljne informacije o građevinskom materijalu možete pronaći u registracijskom dokumentu.

Dozvola/dopuštenje

  • ETA-17/0740
  • ETA-20/0134
  • DoP No. 0148
  • DoP No. 0294
  • DoP No. 0311
Za detalje pogledajte odgovarajuće dokumente

Uputa za sastavljanje

Functionality
  • The UltraCut FBS II R is recommended for the push-through installation.
  • Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
  • We recommend using a tangential impact screwdriver with a suitable impact screwdriver socket or an internal TX drive.
  • The screw is installed correctly when the screw head sits flush on the fixture and cannot be screwed in deeper (visual setting control).
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 1 Picture
Mounting Strip 2 Picture
Mounting Strip 2 Picture
Mounting Strip 2 Picture
Mounting Strip 3 Picture
Mounting Strip 3 Picture
Prikaži upute za sastavljanje u PDF-u
