The high-performance concrete screw for absolute installation ease.

Concrete screw UltraCut FBS II US

The fischer concrete screw UltraCut FBS II US is a powerful anchoring solution with top installation comfort. The concrete screw with its pressed-on washer is ideal for slot fixations and the anchoring of wooden constructions as well as beams and sills. The European Technical Approval for cracked concrete and non-cracked concrete as well as for seismic loads and classification into fire resistance class R 120 guarantee even more safety. The saw tooth geometry enables a quick and easy installation. No drill hole cleaning is required for installation in ceilings and floors. The expansion-free anchorage system enables low edge and axial spacings.

Varijante proizvoda

Download of image data

Varijante proizvoda

Odobrenja / Izveštaji o ispitivanju

42 Varijanta(e) proizvoda

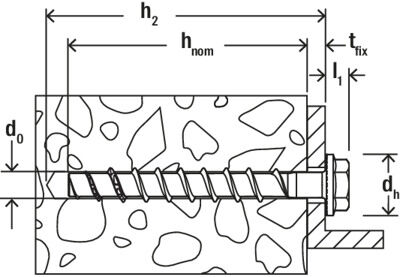

Drill diameter

Min. drill hole depth for through fixings

Screw dimension

Nominal embedment depth / thickness of fixture

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	80 mm
Screw dimension ( d_s x l_s )	10.0x70 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 20 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	- mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 5 mm
Drive	TX40 / SW 13
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251357

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	80 mm
Screw dimension ( d_s x l_s )	10.0x70 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 20 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	- mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 5 mm
Drive	TX40 / SW 13
Packaging	without
Amount	1 pcs
GTIN (EAN-Code)	4048962281545

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	90 mm
Screw dimension ( d_s x l_s )	10.0x80 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 30 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	- mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 15 mm
Drive	TX40 / SW 13
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251364

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	100 mm
Screw dimension ( d_s x l_s )	10.0x90 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 40 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	- mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 55 mm
Drive	TX40 / SW 13
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251371

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	110 mm
Screw dimension ( d_s x l_s )	10.0x100 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 50 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	- mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 35 mm
Drive	TX40 / SW 13
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251388

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	110 mm
Screw dimension ( d_s x l_s )	10.0x100 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 50 mm
Nominal embedment depth / thickness of fixture	—
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 35 mm
Drive	TX40 / SW 13
Packaging	without
Amount	1 pcs
GTIN (EAN-Code)	4048962281538

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	120 mm
Screw dimension ( d_s x l_s )	10.0x110 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 60 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	- mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 45 mm
Drive	TX40 / SW 13
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251395

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	140 mm
Screw dimension ( d_s x l_s )	10.0x130 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 80 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	- mm
Nominal embedment depth / thickness of fixture	—
Drive	TX40 / SW 13
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251401

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	200 mm
Screw dimension ( d_s x l_s )	10.0x190 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 140 mm
Nominal embedment depth / thickness of fixture	—
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 125 mm
Drive	TX40 / SW 13
Packaging	—
Amount	20 pcs
GTIN (EAN-Code)	4048962410631

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	160 mm
Screw dimension ( d_s x l_s )	10.0x150 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 100 mm
Nominal embedment depth / thickness of fixture	—
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 85 mm
Drive	TX40 / SW 13
Packaging	—
Amount	50 pcs
GTIN (EAN-Code)	4048962410617

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	180 mm
Screw dimension ( d_s x l_s )	10.0x170 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	50 / 120 mm
Nominal embedment depth / thickness of fixture	—
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	65 / 105 mm
Drive	TX40 / SW 13
Packaging	—
Amount	50 pcs
GTIN (EAN-Code)	4048962410624

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	80 mm
Screw dimension ( d_s x l_s )	12.0x70 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 15 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 5 mm
Nominal embedment depth / thickness of fixture	—
Drive	SW 15
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251425

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	90 mm
Screw dimension ( d_s x l_s )	12.0x80 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 25 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 15 mm
Nominal embedment depth / thickness of fixture	—
Drive	SW 15
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251432

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	100 mm
Screw dimension ( d_s x l_s )	12.0x90 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 35 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 55 mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	85 / 5 mm
Drive	SW 15
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251449

ETA-approval
DIBt-approval	—
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	90 mm
Screw dimension ( d_s x l_s )	12.0x80 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 25 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 15 mm
Nominal embedment depth / thickness of fixture	—
Drive	SW 15
Packaging	without
Amount	1 pcs
GTIN (EAN-Code)	4048962281552

ETA-approval
DIBt-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	110 mm
Screw dimension ( d_s x l_s )	12.0x100 mm
Nominal embedment depth / thickness of fixture ( h_nom1 / t_fix )	55 / 45 mm
Nominal embedment depth / thickness of fixture ( h_nom2 / t_fix )	65 / 35 mm
Nominal embedment depth / thickness of fixture ( h_nom3 / t_fix )	85 / 15 mm
Drive	SW 15
Packaging	Folding box
Amount	50 pcs
GTIN (EAN-Code)	4048962251456

Legenda = Dostupna dozvola— = Dozvola nije dostupna

Više rezultata

Pregledano 18 od 42 varijanti

Advantages

With up to 3 embedment depths, the UltraCut FBS II US allows for the same screw to be used for different component thicknesses.
The special saw tooth geometry enables fast cutting into the concrete.
Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
Expansion-free anchoring (undercut) allows for lowest edge- and axial spacings.
The ETA approval covers applications in cracked concrete and seismic power categories C1 and C2.
The approved adjustment for the concrete screws allows the screw to be unscrewed twice to place maximum 10 mm packing below the base plate head or to align the attached part, and then to tighten the screw again.
The checking gauge allows for reuse in temporary fixings (e.g. inclined supports) covered by the national approval.
The concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel CP and stainless steel R has an ETA for bricks of clay (EN771-1), solid sand-lime brick (EN771-2) and perforated sand-lime brick (EN771-2) for a flexible use in different substrates.
The installation of the concrete screw FBS II 6-10 in zinc-plated steel, multiple-coated steel and stainless steel R in masonry brick can be made in the joints or in plastered substrates also in groups.

Applications

Guard rails
Consoles/Base plates
Metal profiles
Shelving systems
Protection barriers
Results / beam anchors
Temporary anchoring, e.g. of building site equipment
Shuttering props
Reinforcement of bridges
Rehabilitation of old and ailing buildings
Rehabilitation of car parks

Building materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked
Reinforcement of existing concrete structures
Bricks of clay (EN771-1)
Solid sand-lime brick (EN771-2)
Perforated sand-lime brick (EN771-2)

Suitable for:

Concrete C12/15
Solid building materials
Masonry with a dense structure

Detaljne informacije o građevinskom materijalu možete pronaći u dokumentu za registraciju.

Odobrenja

ETA-15/0352
ETA-20/0321
ETA-20/0134
DoP No. 0185
DoP No. 0227
DoP No. 0311
DoP No. 0225
Z-21.8-2049

Functionality

The UltraCut FBS II is recommended for the push-through installation.
Drill holes do not need to be cleaned during vertical installation (ceiling and floor). For floor fixings the hole must be drilled 3x drill hole diameter deeper.
We recommend using a tangential impact screwdriver with a suitable impact screwdriver socket or an internal TX drive.
The screw is installed correctly when the screw head sits flush on the fixture and cannot be screwed in deeper (visual setting control).

Mounting Strip 1 Picture

1 / 9

Mounting Strip 2 Picture

1 / 3

Mounting Strip 3 Picture

1 / 2

ETA Certification Document

pdf, ETA-15/0352

European Technical Assessment for fischer concrete screw ULTRACUT FBS II - Mechanical fasteners for use in concrete

Napravljeno 05. 10. 2020.

DOP - Declaration of Performance

pdf, DoP No. 0227

Declaration of Performance for fischer concrete screw ULTRACUT FBS II (Mechanical anchor for use in concrete)

Napravljeno 19. 10. 2020.

ETA Certification Document

pdf, ETA-20/0321

European Technical Assessment for fischer concrete screw ULTRACUT FBS II - Connector for Strengthening of existing concrete structures by concrete overlay

Napravljeno 19. 06. 2020.

DOP - Declaration of Performance

pdf, DoP No. 0225

Declaration of Performance for fischer concrete screw ULTRACUT FBS II (Mechanical fastener for use in concrete)

Napravljeno 03. 07. 2020.

ETA Certification Document

pdf, ETA-20/0134

European Technical Assessment for fischer concrete screw UltraCut FBS II - Screw anchor for use in masonry

Napravljeno 14. 07. 2022.

DOP - Declaration of Performance

pdf, DoP No. 0311

Declaration of Performance for fischer concrete screw UltraCut FBS II (screw anchor for use in masonry)

Napravljeno 28. 07. 2022.

DOP - Declaration of Performance

pdf, DoP No. 0185

Declaration of Performance for fischer concrete screw ULTRACUT FBS II (Mechanical fastener for use in concrete)

Napravljeno 27. 11. 2020.

DIBt, National German Certification

pdf, Z-21.8-2049

National technical approval - fischer concrete screw ULTRACUT FBS II for the temporary fastening of building site equipment

Važi od 14. 07. 2021.
do 14. 07. 2026.

Load Table

pdf,

Concrete screw UltraCut FBS II for temporary fastening - Permissible loads of a single anchor in normal concrete of strength class C20/25 to C50/60.

Load Table

pdf,

Concrete screw Ultracut FBS II US hexagon head with integral washer and FBS II SK countersunk head - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Load Table

pdf,

Concrete screw UltraCut FBS II US/SK - Permissible loads for a single anchor in masonry for Push-through installation.

Installation Instructions

pdf,

UltraCut FBS II 8-14 GVZ/CP

Marketing Documents

pdf,

UltraCut FBS II.

Concrete screw UltraCut FBS II US

Varijante proizvoda

Prednosti / Opis proizvoda

Prijava i odobrenje

Uputstvo za montažu

Dokumenti za preuzimanje
