fischer stand-off installation TherMax II 12/110 M12 (2)

Name: fischer stand-off installation TherMax II 12/110 M12 (2)
Brand: fischer

Varijante proizvoda

Download of image data

Top Features

True driving rain resistance and lasting protection against moisture.
Unique compensation for angled drill holes of up to 5°.
Maximum safety and flexibility thanks to approved adjustment without expensive special tools.
Optimal cone geometry for precise and easy milling without tearing the plaster surface.
No thermal bridges thanks to the anti-cold cone.
Absorbs high loads and is particularly easy to install.

The secure stand-off installation of heavy loads on insulated façades.

Advantages

The anti-cold cone made of glass fibre reinforced plastic interrupts the thermal bridge between the fixture and the anchor in the masonry.
The optimized geometry of the cone enables easy and precise cutting into the ETICS. This makes installation particularly easy and at the same time prevents damage to the insulation material and plaster.
Thanks to the articulated connection between the anti-cold cone and the cover cap, angled drill holes of up to 5° can be compensated for.
The elastic EPDM sealing ring is placed on the anti-cold cone at the end of installation. This ensures that the seal is not damaged by the plaster during installation and guarantees 100% functionality and resistance to driving rain. Additional sealing of the annular gap with an elastic sealant and adhesive is not necessary.
With just one TherMax II, insulation thicknesses of 60 to 300 mm in concrete and up to 250 mm in perforated building materials can be covered. The threaded rod is shortened to the appropriate insulation thickness at the installation site.
The stand-off installation system is approved in combination with a wide variety of injection mortars for high loads in a wide range of building materials.
The anti-cold cone and threaded pin can be adjusted retrospectively without expensive special tools to ensure precise alignment. This offers maximum flexibility and is also covered by the approval.
The parts of TherMax II that lie outside the insulation are made of stainless steel.

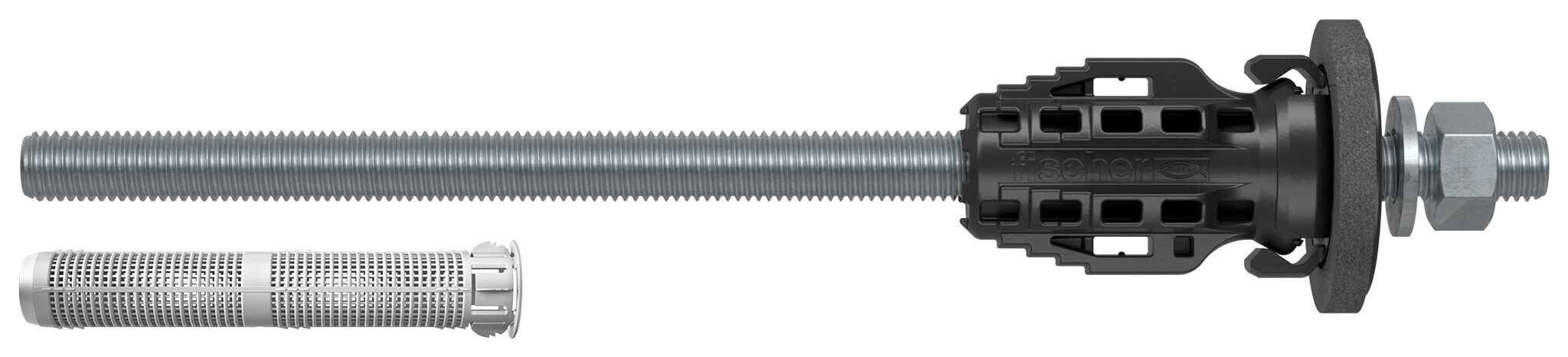

The fischer stand-off installation system TherMax II is a solution for fixing without thermal bridges on insulated façades. The system consists of a special threaded rod made of zinc-plated steel with a glass fibre reinforced cone, a cover cap with EPDM sealing ring and a threaded pin. The anti-cold cone on the threaded rod cuts through the plaster into the insulating material and interrupts the thermal bridge. In combination with various fischer injection mortars, the TherMax II has an approval for numerous building materials. An anchor sleeve is included in the standard delivery for mortar-saving fixing in perforated brick masonry. The separate cover cap with EPDM sealing ring together with the rounded head of the cone equalises angled drill holes. The EPDM sealing ring protects against penetrating humidity and driving rain. The TherMax II secures heavy loads such as awnings, air conditioning units and satellite dishes in concrete, aerated concrete and solid masonry.

Applications

For the thermally separated fixing of:

Awnings
Canopies
French balcony railings
Air conditioning units
Satellite dishes

Building materials

Approved for:

Concrete, cracked and non-cracked
Vertically perforated brick
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Solid sand-lime brick
Solid brick
Aerated concrete

Detaljne informacije o građevinskom materijalu možete pronaći u dokumentu za registraciju.

Odobrenja

2025-01-0118-K1

Functionality

The TherMax II is suitable for pre-positioned installation.
The self-tapping, glass fibre reinforced cone cuts its own way through the plaster into the insulation during installation.
The anti-cold cone uses a thermal barrier to minimise heat losses.
In the case of a resistant plaster (e.g. thick cement plaster), it is recommended to use the included TherMax II cutting blade for grinding out the plaster.
Inclined drill holes up to 5° are levelled by the separated cover cap with sealing ring in combination with the rounded head of the anti-cold cone.
The elastic EPDM sealing ring is placed loosely on the cover cap and thus provides permanent protection against moisture and driving rain.
The anti-cold cone and the threaded pin can be subsequently adjusted.

Pogledajte uputstva za sastavljanje kao PDF

Mounting Strip 1 Picture

1 / 11

Test Certificate

pdf, 2025-01-0118-K1

PfB - Short report fischer TherMax II

Napravljeno 28. 01. 2026.

Load Table

pdf,

Stand-off installation TherMax II 12 and 16 with load-bearing anchor rod made of zinc-plated steel and a displacement of 3 mm

Load Table

pdf,

Stand-off installation TherMax II 12 and 16 with load-bearing anchor rod made of stainless steel R-70 and a displacement of 5 mm

Technical Data Sheet

pdf,

Installation data TherMax II M12/M16

Installation Instructions

pdf,

TherMax II

Marketing Documents

pdf,

Thermal separation with secure hold.

Threaded rod( ø x length )	M12 x 204 mm
Thread( A )	M12
Total length( l )	240 mm
Max. thickness of non-bearing layer( e )	64 - 170 mm
Installation torque( T_inst )	20 Nm
Contents	2 x TherMax II M12 x 240 2 x Sleeve 20 x 130 1 x Bit 1 x Cutting blade 1 x Manual
Packaging	Folding box
Amount	2 pcs
GTIN (EAN-Code)	4048962541601
