Nail disc NSB

The secure cable fixing in wall slots.

The fischer nail disc NSB is a cost-effective solution for the flush-mounted fixing of cables in wall slots and to wood constructions. The nail disc, consisting of high-quality polypropylene and a hardened, zinc-plated steel nail, is already pre-mounted. The nail disc is positioned and the nail is hammered in. The vaulted structure of the nail disc ensures an optimal cable contact pressure and therefore a secure hold. The flat nail disc protrudes only slightly, and can therefore be easily plastered over.

Opis proizvoda

Advantages
  • The nail disc NSB allows for use in two slot widths.
  • The vaulted structure of the nail disc ensures an optimal contact pressure and, as such, for a secure hold.
  • The flat nail disc only protrudes slightly, and can thus be easily plastered over.
  • The nail disc NSB is made from high-strength polypropylene. The nail is made from hardened, galvanised steel. The tried and tested material combination for in-wall installation.

Dostupne verzije proizvoda


6 pronađeno verzija proizvoda

6 pronađeno verzija proizvoda

Verzija
Packaging
Amount
GTIN (EAN-Code)
Broj artikla 048308

Folding box

200 [pcs.]

4006209483084

Broj artikla 048309

Folding box

150 [pcs.]

4006209483091

Broj artikla 048310

Folding box

100 [pcs.]

4006209483107

Broj artikla 048311

Folding box

150 [pcs.]

4006209483114

Broj artikla 048312

Folding box

150 [pcs.]

4006209483121

Broj artikla 048313

Folding box

100 [pcs.]

4006209483138

Pregledano 6 od 6 verzija
0

Primjena i dozvola

Applications
  • For fixing cables in wall slots
Building materials
  • Vertically perforated brick
  • Pumice
  • Lightweight aggregate concrete
  • Aerated concrete
  • Hardboard
  • Wood
  • Chipboard
  • Plywood
  • Solid panel made from gypsum
* Detaljne informacije o građevinskom materijalu možete pronaći u registracijskom dokumentu.

Uputa za sastavljanje

Functionality
  • Pull in cable.

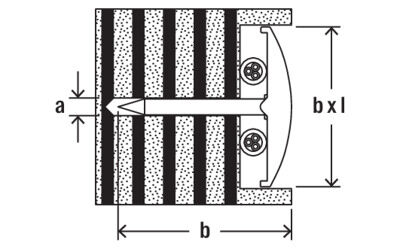

  • Align the nail disc with either dimensions 27 mm or 34 mm, depending on the slot width, and hit the nail in with a hammer.
  • The cables are fixed in the wall slots by the curved washer.
