fischer Window frame screws FFS 7.5 x 132 TX30 K SB-card

Name: fischer Window frame screws FFS 7.5 x 132 TX30 K SB-card
Brand: fischer

Varijante proizvoda

Download of image data

Top Features

Cost-effective screw installation without plugs.
For all solid and perforated building materials.
Fast series installation due to small drill hole diameter of 6 mm.
Stress-free, durable fixing of the frame. Continuous thread prevents the frame from being pulled.
Power-saving installation: Special thread reduces force required for screwing.

The economic special screw with flat head for window installation.

Advantages

Screw installation without plug for economical processing.
The small drill bit diameter of 6 mm allows for efficient series installation.
The continuous thread ensures a stress-free fixing of the frame in the substrate.
The high-low-thread at the screw tip as well as several cutting notches reduce the amount of force required for screwing in the screws. The installation process can be completed without excessive effort.
According to the ift Rosenheim suitable for the fixation of a plastic window in brick masonry.

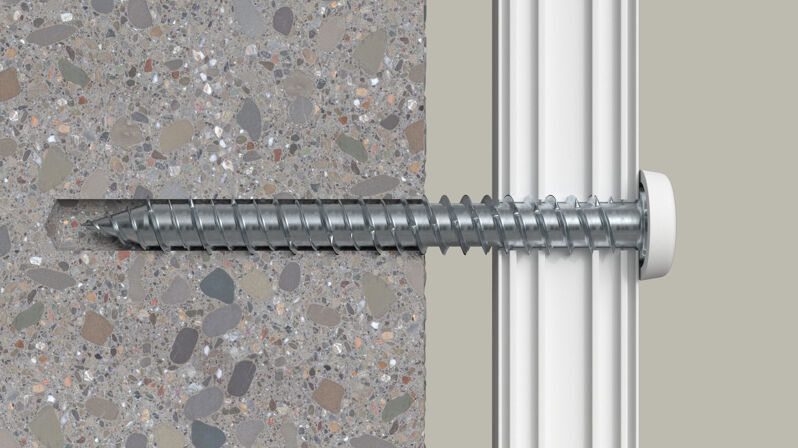

The fischer window frame screw FFS with flat head is a special screw for cost-effective assembly of window frames. After drilling, the screw can be directly driven into solid and perforated building materials. The continuous special thread prevents window frames from being pulled against the substrate. This is then fixed in a stress-free, durable manner.

Applications

Window frames made of wood, plastic and aluminium
Door frames
Squared timbers

Building materials

Concrete

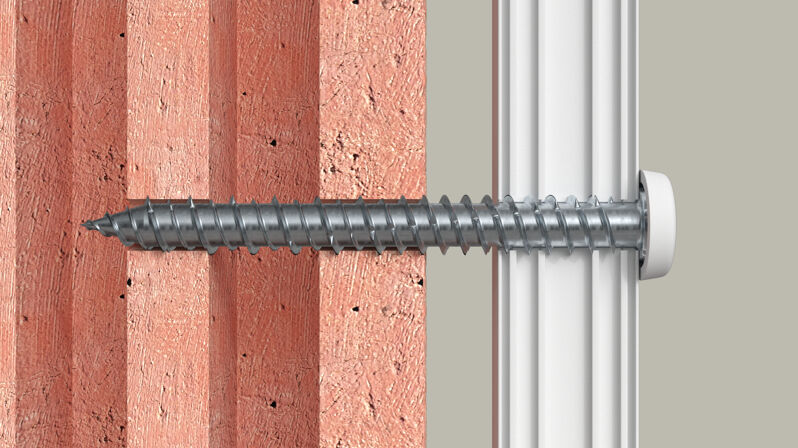

Vertically perforated brick
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Solid sand-lime brick
Solid brick made from lightweight concrete
Solid brick
Aerated concrete

Detaljne informacije o građevinskom materijalu možete pronaći u dokumentu za registraciju.

Odobrenja

14-000559-PRO2

Diameter ( d )	7,5 mm
Screw length ( l_s )	132 mm
Drive	TX30
Drill diameter ( d₀ )	6 mm
Head-ø ( d_h )	11,5 mm

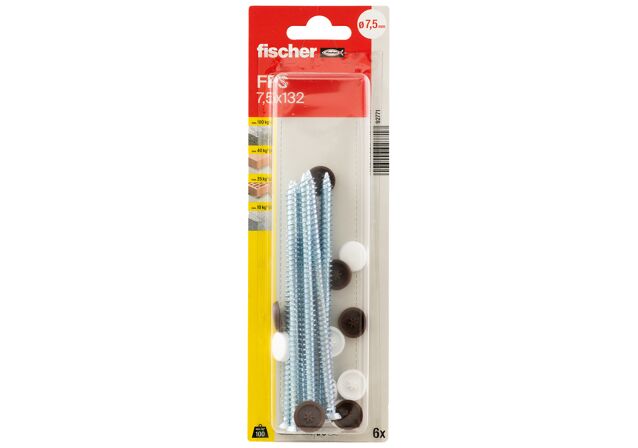

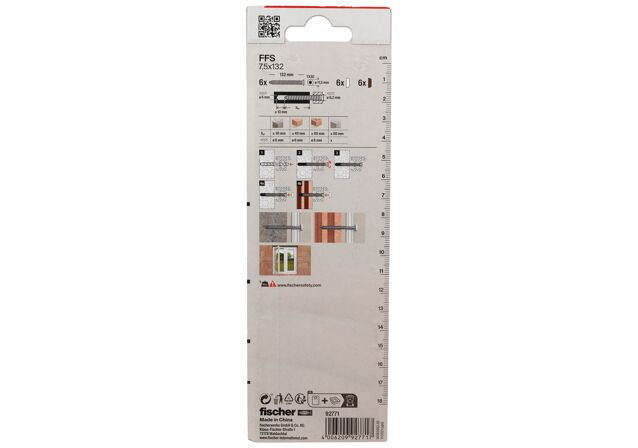

Contents	6 x Window frame screw FFS 7.5 x 132 6 x Cover cap white 6 x Cover cap brown
Packaging	Blister card
Amount	6 pcs
GTIN (EAN-Code)	4006209927717
