The cost-efficient fixing with large washer for flexible use in non-cracked concrete

Bolt anchor FBN II GS with large washer

Name: Bolt anchor FBN II GS with large washer
Brand: fischer

The fischer bolt anchor FBN II with its large washer is a steel anchor for cost-effective fixations in non-cracked concrete. With its large pre-mounted washer, the zinc-plated steel anchor is recommended for the fastening of footing beams and sills as well as for other wood constructions. Thanks to its long thread and the two anchorage depths, the fischer bolt anchor FBN II is particularly flexible. In addition to pre-positioned and push-through installation, the bolt anchor is suitable for stand-off installation.

Varijante proizvoda

Download of image data

Varijante proizvoda

Odobrenja / Izveštaji o ispitivanju

18 Varijanta(e) proizvoda

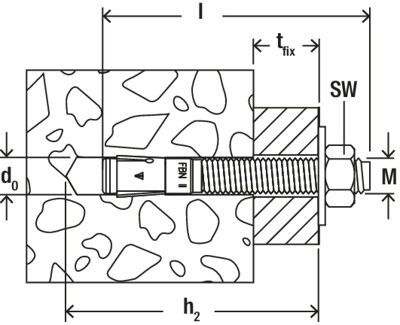

Drill diameter

Min. drill hole depth for through fixings

Anchor length

Max. usable length hef,stand./hef,min.

Thread

Width across nut

Legenda = Dostupna dozvola— = Dozvola nije dostupna

Pregledano 18 od 18 varijanti

Advantages

The larger washer included with the FBN II GS creates a large supporting surface and, as such, allows for use in wood construction.
The pre-fitted washer ensures a fast assembly.
The standard anchorage depth achieves the maximum load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
The anchor is also ideal for large fixture thicknesses.
The long thread balances component tolerances and stand-off installations, and thus increases flexibility.
Fewer hammer blows and the minimal torque slippage allow for a noticeably simpler assembly.
The drive-in pin protects the threaded screw from damage, and as such ensures a faster installation and dismantling of the fixture.

Applications

Anchor plates with slotted holes
Façade sub-structures with slotted holes
Timber constructions
Tension anchor
Anchoring of wooden beams

Building materials

Approved for:

Concrete C20/25 to C50/60, non-cracked

Also suitable for:

Concrete C12/15
Natural stone with dense structure

Detaljne informacije o građevinskom materijalu možete pronaći u dokumentu za registraciju.

Odobrenja

ETA-07/0211
DoP No. 0192

Functionality

The FBN II GS is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
The head embossing offers a simple control of the anchoring.
In the case of series installation, we recommend using the FABS bolt anchor setting tool.

Mounting Strip 1 Picture

1 / 5

ETA Certification Document

pdf, ETA-07/0211

European Technical Assessment for fischer Bolt Anchor FBN II, FBN II R - Mechanical fastener for use in concrete

Napravljeno 13. 07. 2020.

DOP - Declaration of Performance

pdf, DoP No. 0192

Declaration of Performance for fischer Bolt Anchor FBN II, FBN II R (Mechanical anchor for use in concrete)

Napravljeno 27. 07. 2020.

Marketing Documents

pdf,

Bolt anchor FBN II. The cost-efficient fixing for flexible use in non-cracked concrete.

Komponente sistema

Slične kategorije proizvoda

Bolt anchor FBN II
105 varijanti

ETA-approval
Drill diameter ( d₀ )	12 mm
Min. drill hole depth for through fixings ( h₂ )	165 mm
Anchor length ( l )	174 mm
Max. usable length hef,stand./hef,min. ( t_fix )	80 / 95 mm
Thread ( ø x length )	M12 x 129 mm
Width across nut	19 mm
Washer (outer diameter x thickness)	44 x 4 mm
Packaging	Folding box
Amount	20 pcs.
GTIN (EAN-Code)	4006209455784

ETA-approval
Drill diameter ( d₀ )	12 mm
Min. drill hole depth for through fixings ( h₂ )	185 mm
Anchor length ( l )	194 mm
Max. usable length hef,stand./hef,min. ( t_fix )	100 / 115 mm
Thread ( ø x length )	M12 x 149 mm
Width across nut	19 mm
Washer (outer diameter x thickness)	44 x 4 mm
Packaging	Folding box
Amount	20 pcs.
GTIN (EAN-Code)	4006209455791

ETA-approval
Drill diameter ( d₀ )	12 mm
Min. drill hole depth for through fixings ( h₂ )	185 mm
Anchor length ( l )	194 mm
Max. usable length hef,stand./hef,min. ( t_fix )	100 / 115 mm
Thread ( ø x length )	M12 x 149 mm
Width across nut	19 mm
Washer (outer diameter x thickness)	44 x 4 mm
Packaging	Folding box
Amount	1 pcs.
GTIN (EAN-Code)	4006209915653

ETA-approval
Drill diameter ( d₀ )	12 mm
Min. drill hole depth for through fixings ( h₂ )	205 mm
Anchor length ( l )	214 mm
Max. usable length hef,stand./hef,min. ( t_fix )	120 / 135 mm
Thread ( ø x length )	M12 x 169 mm
Width across nut	19 mm
Washer (outer diameter x thickness)	44 x 4 mm
Packaging	Folding box
Amount	20 pcs.
GTIN (EAN-Code)	4006209455807

ETA-approval
Drill diameter ( d₀ )	12 mm
Min. drill hole depth for through fixings ( h₂ )	205 mm
Anchor length ( l )	214 mm
Max. usable length hef,stand./hef,min. ( t_fix )	120 / 135 mm
Thread ( ø x length )	M12 x 169 mm
Width across nut	19 mm
Washer (outer diameter x thickness)	44 x 4 mm
Packaging	Folding box
Amount	1 pcs.
GTIN (EAN-Code)	4006209915660

Bolt anchor FBN II GS with large washer

Varijante proizvoda

Prednosti / Opis proizvoda

Prijava i odobrenje

Uputstvo za montažu

Dokumenti za preuzimanje

ETA-approval
Drill diameter ( d₀ )	16 mm
Min. drill hole depth for through fixings ( h₂ )	204 mm
Anchor length ( l )	218 mm
Max. usable length hef,stand./hef,min. ( t_fix )	100 / 115 mm
Thread ( ø x length )	M16 x 164 mm
Width across nut	24 mm
Washer (outer diameter x thickness)	56 x 5 mm
Packaging	Folding box
Amount	10 pcs.
GTIN (EAN-Code)	4006209455883
