Bolt anchor FAZ II Plus H with cap nut

The fischer bolt anchor FAZ II Plus H is the steel anchor for highest demands. The new sizes of the special cap nut version (M10 and M12) are also implemented in the ETA assessment and it is ideal for architecturally sophisticated applications. Thanks to variable anchorage depths and easy installation, the FAZ II Plus can be used in many different ways. The tried-and-trusted expansion clip securely feeds the loads into the concrete and ensures a high load-bearing-capacity. The FAZ II Plus H is the optimal solution (for example) for the anchorage of railings in visible areas: The cap nut, not only gives the option for a better and refined optical design but also, ensures an accident free installation due to its closed shape.

Varijante proizvoda

Download of image data

Varijante proizvoda

Odobrenja / Izveštaji o ispitivanju

8 Varijanta(e) proizvoda

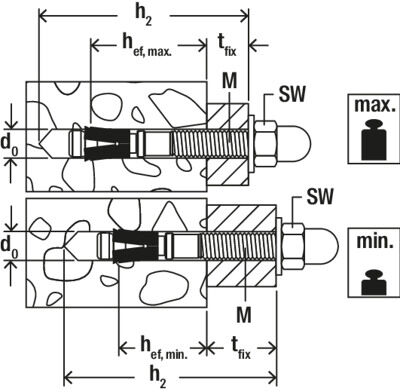

Drill diameter

Min. drill hole depth for through fixings

Max. usable length hef,stand./hef,min.

Anchor length

Thread

Width across nut

Legenda = Dostupna dozvola— = Dozvola nije dostupna

Pregledano 8 od 8 varijanti

Advantages

The cap nut is implemented in the ETA assessment and it is ideal for architecturally sophisticated applications.
Due to its closed shape, the cap nut version ensures an accident free installation.
Quick and easier assembly without the need for drill hole cleaning (M8-M24).
Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16).
The variable anchorage depths allow a millimetre-accurate adjustment to the loads.

Applications

Guard rails
Consoles

Building materials

Approved for:

Beton C20/25 bis C50/60, gerissen und ungerissen

Also suitable for:

Concrete C12/15 (classification available)
Concrete C80/95 (classification available)
Steel fiber concrete (classification available)
Solid sand-lime brick (classification available)

Detaljne informacije o građevinskom materijalu možete pronaći u dokumentu za registraciju.

Odobrenja

ETA-19/0520
DoP No. 0334
3023222

Functionality

The FAZ II Plus H is suitable for pre-positioned and push-through installation.
When applying the torque, the cone bolt is pulled into the expansion sleeve and expand it against the drill hole wall.
The anchor is set in line with the approval once the preset installation torque is achieved.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 6

Mounting Strip 3 Picture

1 / 5

ETA Certification Document

pdf, ETA-19/0520

European Technical Assessment for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR - Mechanical fasteners for use in concrete

Napravljeno 24. 05. 2023.

DOP - Declaration of Performance

pdf, DoP No. 0334

Declaration of Performance for for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR (Mechanical anchor for use in concrete)

Napravljeno 31. 05. 2023.

Factory Mutual

pdf, 3023222

FM Approval - Certificate of Compliance

Load Table

pdf,

Bolt anchor FAZ II Plus - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Load Table

pdf,

Bolt anchor FAZ II Plus dynamic - Design values for cyclic fatigue loading of a single anchor in cracked or non-cracked normal concrete of strength class C20/25.

Installation Instructions

pdf,

Installation Instruction fischer bolt anchor FAZ II Plus with cap nut

Marketing Documents

pdf,

FAZ II Plus.

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	87 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 30 mm
Anchor length ( l )	95 mm
Thread ( ø x length )	M10 x 53 mm
Width across nut	17 mm
Amount	20 pcs
GTIN (EAN-Code)	4048962463125

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	97 mm
Max. usable length hef,stand./hef,min. ( t_fix )	20 / 40 mm
Anchor length ( l )	105 mm
Thread ( ø x length )	M10 x 63 mm
Width across nut	17 mm
Amount	20 pcs
GTIN (EAN-Code)	4048962463132

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	12 mm
Min. drill hole depth for through fixings ( h₂ )	99 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 30 mm
Anchor length ( l )	109 mm
Thread ( ø x length )	M12 x 61 mm
Width across nut	19 mm
Amount	20 pcs
GTIN (EAN-Code)	4048962463149

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	12 mm
Min. drill hole depth for through fixings ( h₂ )	109 mm
Max. usable length hef,stand./hef,min. ( t_fix )	20 / 40 mm
Anchor length ( l )	119 mm
Thread ( ø x length )	M12 x 71 mm
Width across nut	19 mm
Amount	20 pcs
GTIN (EAN-Code)	4048962463156

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	87 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 30 mm
Anchor length ( l )	95 mm
Thread ( ø x length )	M10 x 53 mm
Width across nut	17 mm
Amount	20 pcs
GTIN (EAN-Code)	4048962463163
