With large washer. For highest demands. Powerful and flexible

Bolt anchor FAZ II Plus GS with large washer

Name: Bolt anchor FAZ II Plus GS with large washer
Brand: fischer

The fischer bolt anchor FAZ II Plus GS with its large washer is the ideal bolt anchor for the highest requirements. With the steel anchor made from zinc-plated and stainless steel, heavy loads are secured in cracked and non-cracked concrete. The steel anchor with the large washer is perfect for securing steel components with slots, for example. Thanks to the variable anchorage depths and the easy assembly process, the FAZ II Plus GS can be used particularly flexibly. The tried-and-tested expansion clip introduces the loads into the concrete particularly safely, and enables a top load-bearing capacity.

Varijante proizvoda

Download of image data

Varijante proizvoda

Odobrenja / Izveštaji o ispitivanju

27 Varijanta(e) proizvoda

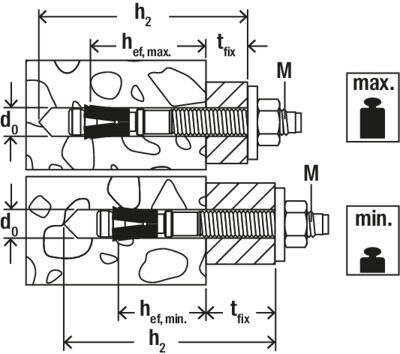

Drill diameter

Min. drill hole depth for through fixings

Max. usable length hef,stand./hef,min.

Anchor length

Thread

Width across nut

Legenda = Dostupna dozvola— = Dozvola nije dostupna

Više rezultata

Pregledano 18 od 27 varijanti

Advantages

The FAZ II Plus GS are suitable for fixing steel fixtures with long holes thanks to the special washer, and help to reduce installation effort.
The significantly larger outer diameter of the washers for FAZ II Plus 16 GS ensures a larger supporting surface, and as such allows for use in wood construction.
Quick and easier assembly without the need for drill hole cleaning (M8-M24).
Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16).
The variable anchorage depths allow a millimetre-accurate adjustment to the loads.

Applications

Anchor plates with slotted holes
Façade sub-structures with slotted holes
Timber constructions
Tension anchor
Anchoring of wooden beams

Building materials

Approved for:

Beton C20/25 bis C50/60, gerissen und ungerissen

Also suitable for:

Concrete C12/15 (classification available)
Concrete C80/95 (classification available)
Steel fiber concrete (classification available)
Solid sand-lime brick (classification available)

Detaljne informacije o građevinskom materijalu možete pronaći u dokumentu za registraciju.

Odobrenja

ETA-19/0520
ETA-20/0897
DoP No. 0334
DoP No. 0337
3023222

Functionality

The FAZ II Plus GS is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
The anchor is set in line with the approval once the preset installation torque is achieved.

Mounting Strip 1 Picture

1 / 5

Mounting Strip 2 Picture

1 / 6

Mounting Strip 3 Picture

1 / 8

ETA Certification Document

pdf, ETA-19/0520

European Technical Assessment for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR - Mechanical fasteners for use in concrete

Napravljeno 24. 05. 2023.

DOP - Declaration of Performance

pdf, DoP No. 0334

Declaration of Performance for for fischer Bolt Anchor FAZ II Plus, FAZ II Plus R, FAZ II Plus HCR (Mechanical anchor for use in concrete)

Napravljeno 31. 05. 2023.

ETA Certification Document

pdf, ETA-20/0897

European Technical Assessment for fischer Bolt Anchor FAZ II Plus dynamic - Post-installed fasteners in concrete under fatigue cyclic loading

Napravljeno 22. 05. 2023.

DOP - Declaration of Performance

pdf, DoP No. 0337

Declaration of Performance for for fischer Bolt Anchor FAZ II Plus dynamic (Post-installed fastening in cracked or uncracked concrete)

Napravljeno 05. 06. 2023.

Factory Mutual

pdf, 3023222

FM Approval - Certificate of Compliance

Load Table

pdf,

Bolt anchor FAZ II Plus - Permissible loads of a single anchor in normal concrete of strength class C20/25.

Load Table

pdf,

Bolt anchor FAZ II Plus dynamic - Design values for cyclic fatigue loading of a single anchor in cracked or non-cracked normal concrete of strength class C20/25.

Marketing Documents

pdf,

FAZ II Plus.

Komponente sistema

Hammer drill bit Quattric II S / Quattric II
92 varijanti

Slične kategorije proizvoda

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	65 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 20 mm
Anchor length ( l )	75 mm
Thread ( ø x length )	M8 x 38 mm
Width across nut	13 mm
Packaging	—
Amount	50 pcs.
GTIN (EAN-Code)	4048962462692

ETA-approval
Seismic-Approval	C1
Drill diameter ( d₀ )	8 mm
Min. drill hole depth for through fixings ( h₂ )	85 mm
Max. usable length hef,stand./hef,min. ( t_fix )	30 / 40 mm
Anchor length ( l )	95 mm
Thread ( ø x length )	M8 x 58 mm
Width across nut	13 mm
Packaging	—
Amount	50 pcs.
GTIN (EAN-Code)	4048962462708

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	85 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 30 mm
Anchor length ( l )	95 mm
Thread ( ø x length )	M10 x 53 mm
Width across nut	17 mm
Packaging	—
Amount	50 pcs.
GTIN (EAN-Code)	4048962462715

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	105 mm
Max. usable length hef,stand./hef,min. ( t_fix )	30 / 50 mm
Anchor length ( l )	115 mm
Thread ( ø x length )	M10 x 73 mm
Width across nut	17 mm
Packaging	—
Amount	25 pcs.
GTIN (EAN-Code)	4048962462722

ETA-approval
Seismic-Approval	C1 / C2
Drill diameter ( d₀ )	12 mm
Min. drill hole depth for through fixings ( h₂ )	100 mm
Max. usable length hef,stand./hef,min. ( t_fix )	10 / 30 mm
Anchor length ( l )	110 mm
Thread ( ø x length )	M12 x 61 mm
Width across nut	19 mm
Packaging	—
Amount	20 pcs.
GTIN (EAN-Code)	4048962462739
