fischer Insulation fixing FID II Plus

Name: fischer Insulation fixing FID II Plus
Brand: fischer

Varijante proizvoda

Download of image data

Top Features

Flexible use with screws of 4.5-8.0 mm diameter
Clean setting result thanks to special underhead geometry
Time-saving without pre-drilling in thin plaster layers
Increase in load values due to an additional chemical component
Universal use in all insulation materials

The strong insulation plug for medium heavy attachments on ETICS.

Advantages

The use of standard screws with a diameter of 4.5-6-0 mm allows flexible use.
Maximum stability due to glass fibre reinforced plastic.
Due to the special tip geometry, the plug screws through plaster thicknesses of up to 10 mm without pre-drilling, which enables a fast processing.
The additional use of a chemical component, such as the fischer Fill&Fix or fischer PU foam, can significantly increase the loads.
The FID II Plus is easily set with a standard TX40 drive.
The fischer insulation plug enables an universal use in all common insulation materials.

The fischer FID II Plus insulation plug is suitable for fixing moderately heavy attachments to external thermal insulation composite systems. Thanks to the combined centering, milling and cutting function of the plug tip, the FID II Plus can be screwed in with pinpoint accuracy. The optional use of an additional chemical component in the insulation anchor, such as fischer Fill&Fix or fischer PU foam, can significantly increase the load values. This enables the secure fixing of attachments such as wall boxes or parcel boxes.

Functionality

The FID II Plus is placed in the ETICS with a cordless screwdriver. For thick layers of plaster from 10 mm pre-drilling is recommended.

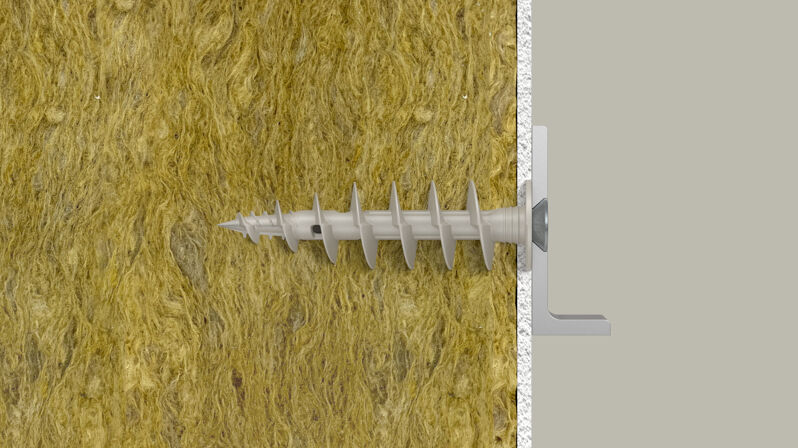

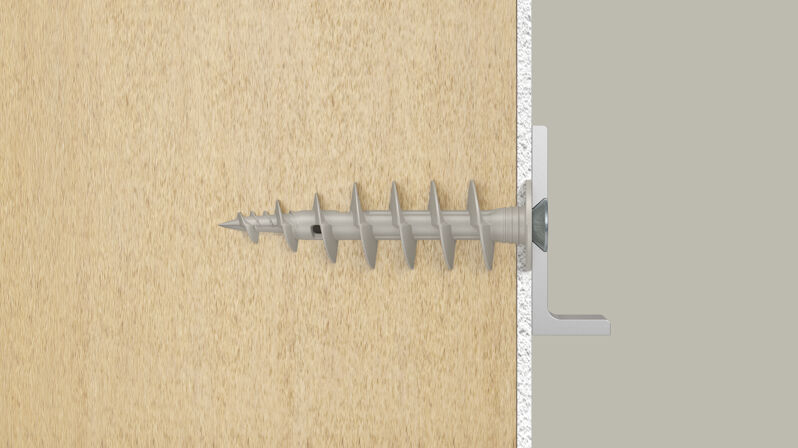

The insulation plug anchors itself firmly in the insulation material without destroying the plaster.

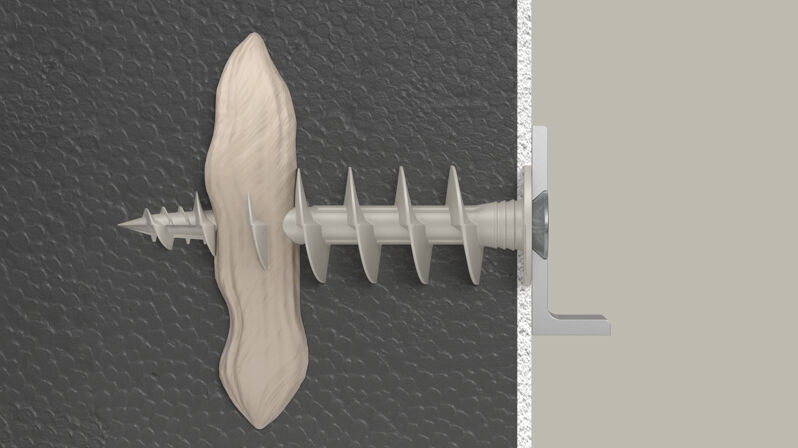

To increase the load, 1C PU foam or fischer Fill&Fix can be inserted into the FID II Plus using the filling aids supplied in the blister card. A precise application recommendation for the chemical component can be found in the load table.
After curing time of the chemical component (PU foam: 14 - 24 h, Fill&Fix: 2 - 3 min), the screw can be screwed in.
After successful pre-assembly, the FID II Plus can be additionally sealed with a sealing compound.

Mounting Strip 1 Picture

1 / 3

Mounting Strip 2 Picture

1 / 8

Mounting Strip 3 Picture

1 / 7

Anchor length ( l )	80 mm
Anchor head diameter ( D )	28 mm
Min. bolt penetration ( l_E,min )	30 mm
Max. bolt penetration ( l_E,max )	60 mm
Wood and chipboard screws ( d_s )	4.5 - 6.0 mm
Drive	TX40

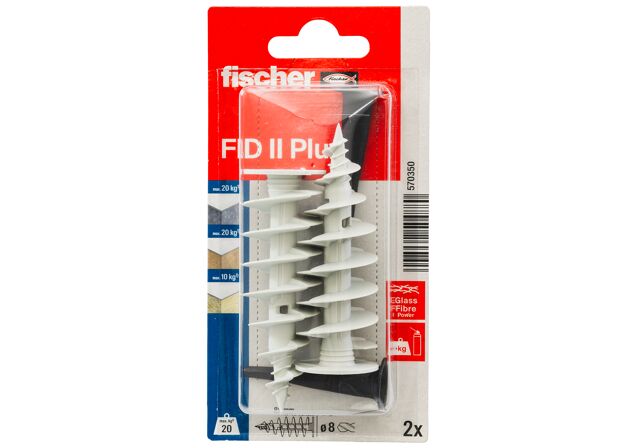

Contents	2 x Insulation fixing FID II Plus
Packaging	Blister card
Amount	2 pcs
GTIN (EAN-Code)	4048962504880
